Patio Misting System

Patio Misting System

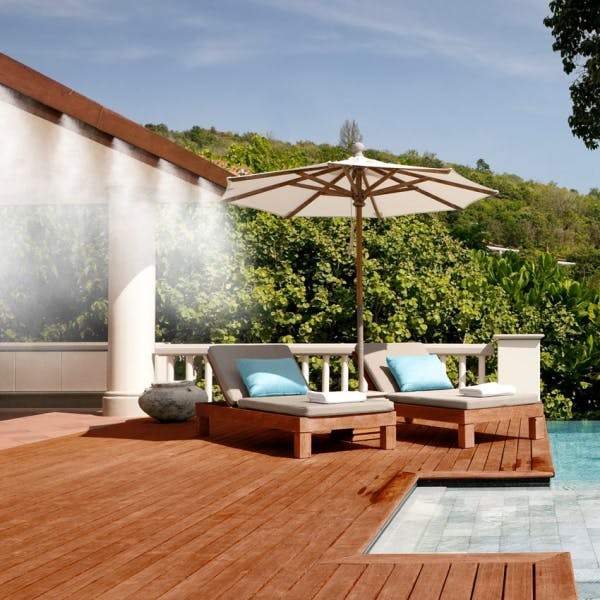

Stay cool while sitting outside on a hot day with the top-notch professional home cooling system, Patio Mist. The Patio Mist is a flexible, high-pressure system that is capable of producing industrial-strength mist. The Patio Misting System is engineered in such a way that it is able to withstand higher pressure than the standard misting systems. More so, it creates a finer mist that is able to flash-evaporate at a faster rate.

The Patio Mist comes pre-assembled with non-drip nozzles and hardware. It delivers a continuous stream of super fine mist which cools the temperature down by around 1C. The Misting System can be used with standard water pressure.

Product Features:

• Easy installation
• Can be affixed with cable ties
• The length between nozzles can be determined according to choice
• Cools air up to 10 degrees Celsius

What's in the Box

• 10m of tubing.
• 10 connectors.
• 10 fine mist nozzles.
• 1 x standard tap connector.
• 1 x standard tap adaptor.

Instructions

Measure and cut the misting pipe at the desired length intervals (at the points where you want the misting nozzles situated along the misting pipe.) Unscrew the locking caps on the inline nozzle connectors (about halfway), and push the misting pipe all the way into the connectors, then tighten the locking caps to secure the misting pipe in place. Do the same for the end nozzle connector and the tap connector. Screw the brass nozzles into the connectors securely. Fix the misting line to your structure (patio, Lapa, gazebo, umbrella, etc.) using the cable ties provided. Connect to your tap fitting or to the clip-on garden fittings on your garden hose pipe. You are now ready to use your misting kit.

Please Note

Open tap slowly (not too full) allowing the misting pipe to fill, and then regulate as required when the nozzles are producing the mist spray. If the system has not been used for a long period (i.e. during the winter months) and the nozzles appear to be blocked, they can be unblocked simply by wetting the end of your finger and wiping it across the face of the nozzle.
